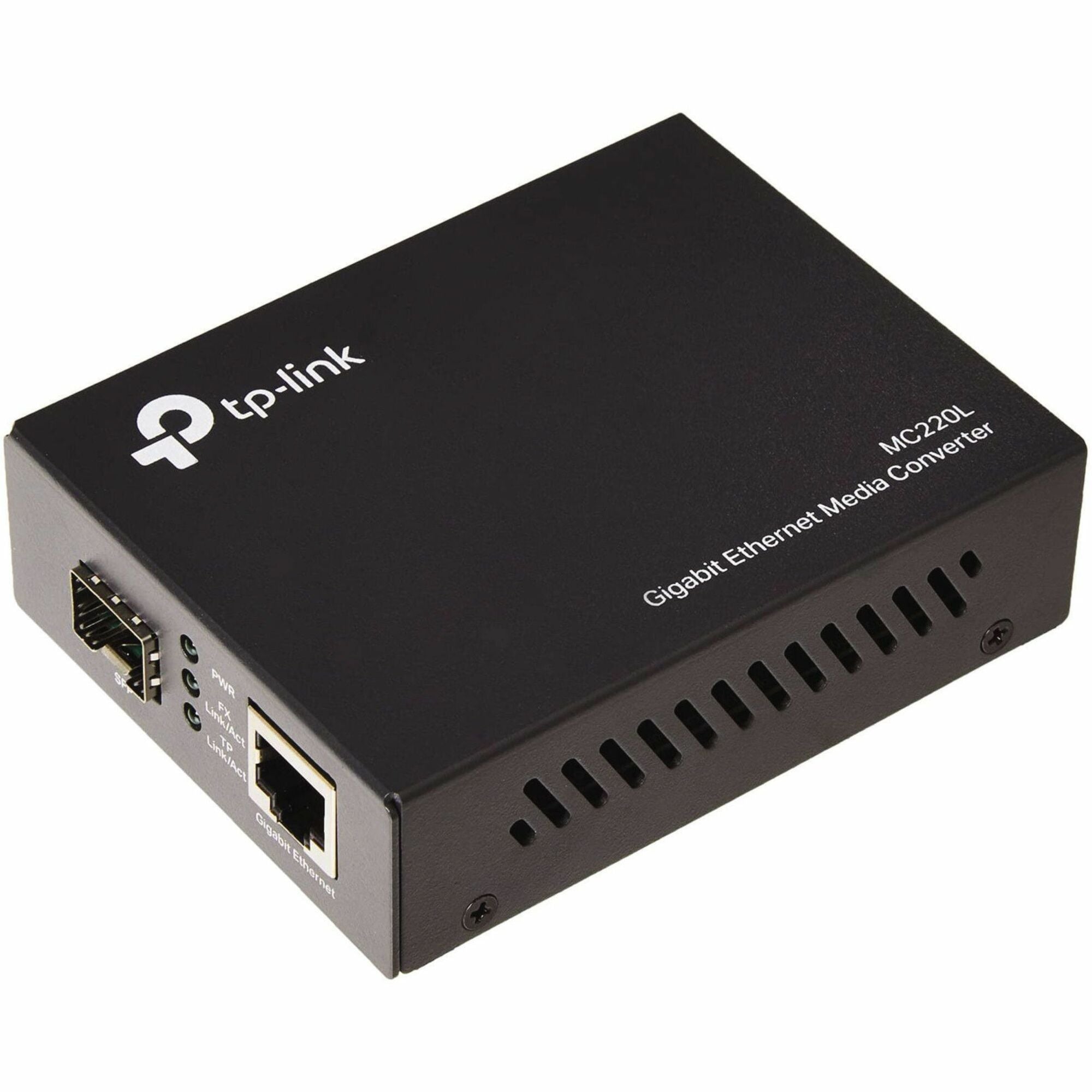

Image of TPLMC220L

TP-Link Transceiver/Media Converter

$51.09
Skip to product information
Image of TPLMC220L

TP-Link Transceiver/Media Converter

$51.09
Shipping calculated at checkout.

Designed to convert gigabit (1000BASE-SX/LX) fiber to gigabit (1000Base-T) copper media or vice versa. It transmits and receives data at 850 nm over multimode fiber and 1310 nm over single mode fiber. The various features of this module allow you to use it also as a standalone device (chassis is not required) or with TP-LINK's 19 in system chassis, auto MDI/MDI-X for TX port and LED indicators on the front panel. Transmits over extended fiber optic distances using multimode fiber up to 0.55 kilometers and single mode fiber up to 10 kilometers. 2-year limited warranty.

TP-Link Transceiver/Media Converter - Network (RJ-45) - Single-mode - 850 nm, 1310 nm Fiber - Gigabit Ethernet - 1000Base-T, 1000Base-SX, 1000Base-LH, 1000Base-LX - 0.55 km (0.34 Mile) - Standalone, Panel-mountable

General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: 4888146
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Name: Transceiver/Media Converter
Marketing Information:

Designed to convert gigabit (1000BASE-SX/LX) fiber to gigabit (1000Base-T) copper media or vice versa. It transmits and receives data at 850 nm over multimode fiber and 1310 nm over single mode fiber. The various features of this module allow you to use it also as a standalone device (chassis is not required) or with TP-LINK's 19 in system chassis, auto MDI/MDI-X for TX port and LED indicators on the front panel. Transmits over extended fiber optic distances using multimode fiber up to 0.55 kilometers and single mode fiber up to 10 kilometers. 2-year limited warranty.


Product Type: Transceiver/Media Converter
Interfaces/Ports
Network (RJ-45): Yes
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Fiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength:
  • 850 nm
  • 1310 nm
Maximum Distance Supported: 0.55 km (0.34 Mile)
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:
  • 1000Base-T
  • 1000Base-SX
  • 1000Base-LH
  • 1000Base-LX
Physical Characteristics
Form Factor:
  • Standalone
  • Panel-mountable
Height: 0.20" (5.08 mm)
Width: 0.20" (5.08 mm)
Weight (Approximate): 0.16 oz (4.54 g)
Warranty
Limited Warranty: 2 Year

Product Numbers: 845973030476
