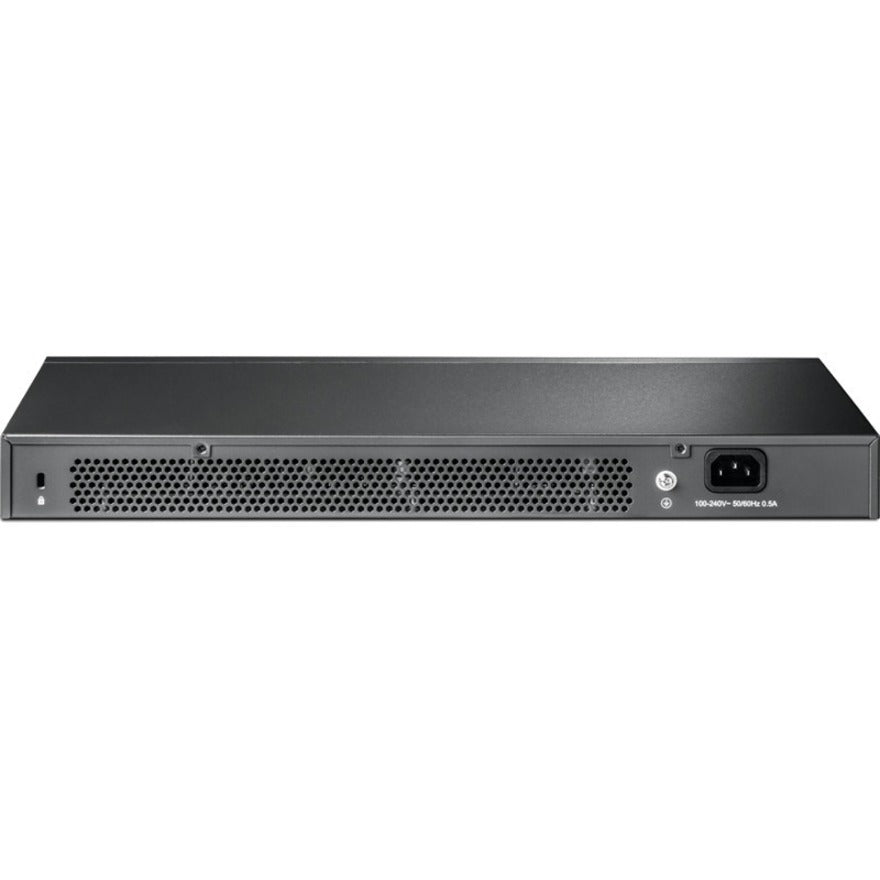

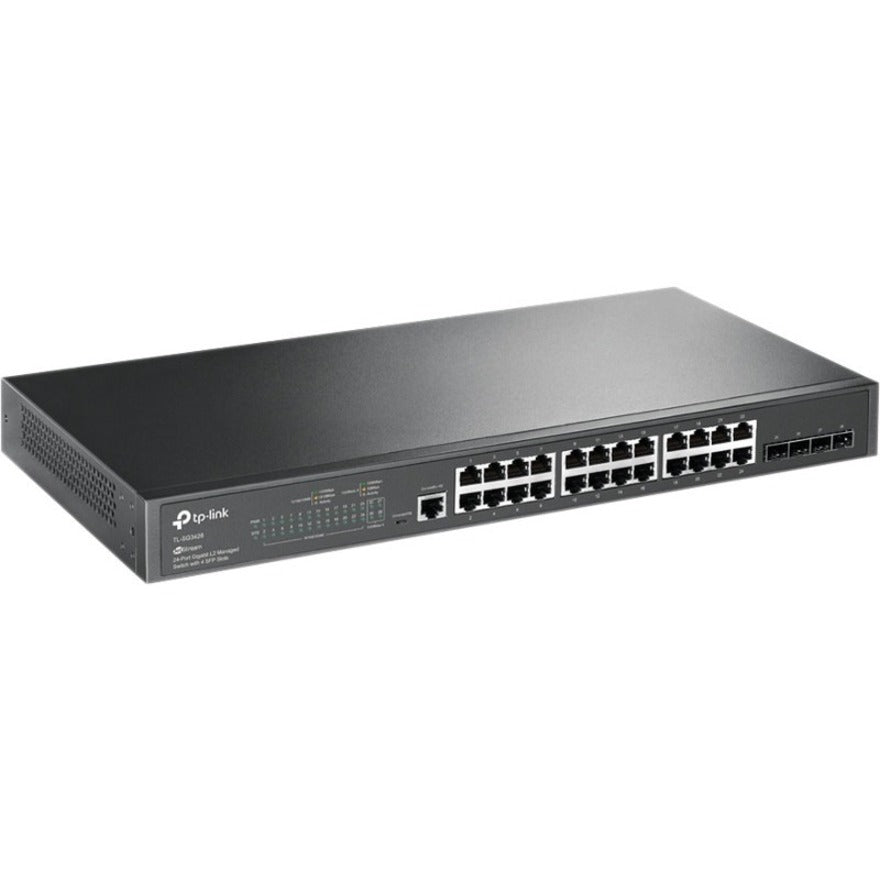

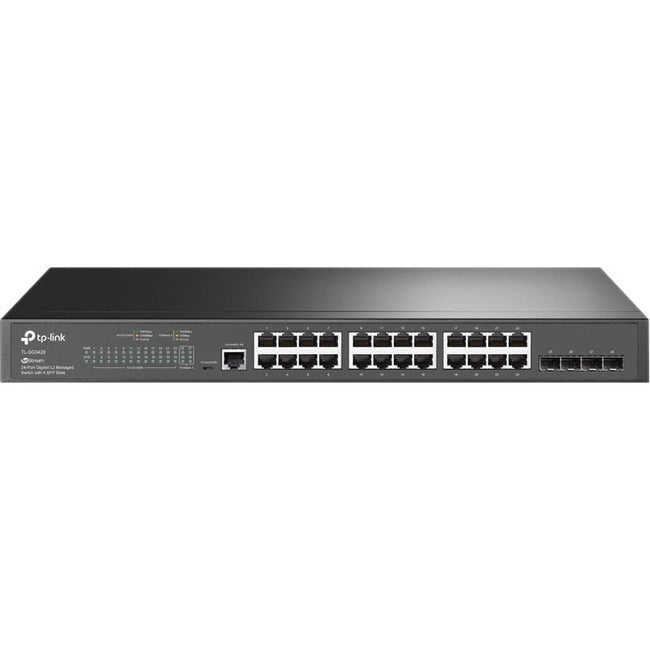

TP-Link JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
TP-Link JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
Convenient Gigabit Switch for a Complete Omada NetworkJetStream 24-Port Gigabit L2 Managed Switch with 4 SFP SlotsTL-SG3428 Reliable Gigabit Connections24Ã Gigabit RJ45 Ports and 4Ã Gigabit SFP Ports Advanced L2+ Features L2/L3/L4 QoS, ACL, Static Routing and More Abundant Secure Strategies LAN Area Investment Protection Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network Software Defined Networking (SDN) with Cloud Access Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. Abundant L2 and L2+ Features A complete lineup of L2 features are supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. ISP Features sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware. Enterprise Level Management Features Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events.
TP-Link JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots - 24 Ports - Manageable - Gigabit Ethernet - 1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 19.90 W Power Consumption - Optical Fiber, Twisted Pair - Rack-mountable, Desktop - 5 Year Limited Warranty
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SG3428
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: JetStream
Product Model: TL-SG3428
Product Name: JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
Marketing Information:
Convenient Gigabit Switch for a Complete Omada Network
JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
TL-SG3428
Reliable Gigabit Connections
24Ã Gigabit RJ45 Ports and 4Ã Gigabit SFP Ports
Advanced L2+ Features
L2/L3/L4 QoS, ACL, Static Routing and More
Abundant Secure Strategies
LAN Area Investment Protection
Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network
Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Abundant L2 and L2+ Features
A complete lineup of L2 features are supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Enterprise Level Management Features
Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enables the switch to be polled for valuable status information and to send traps on abnormal events.
Product Type: Ethernet Switch
Total Number of Network Ports: 24
Modular: Yes
Network (RJ-45): Yes

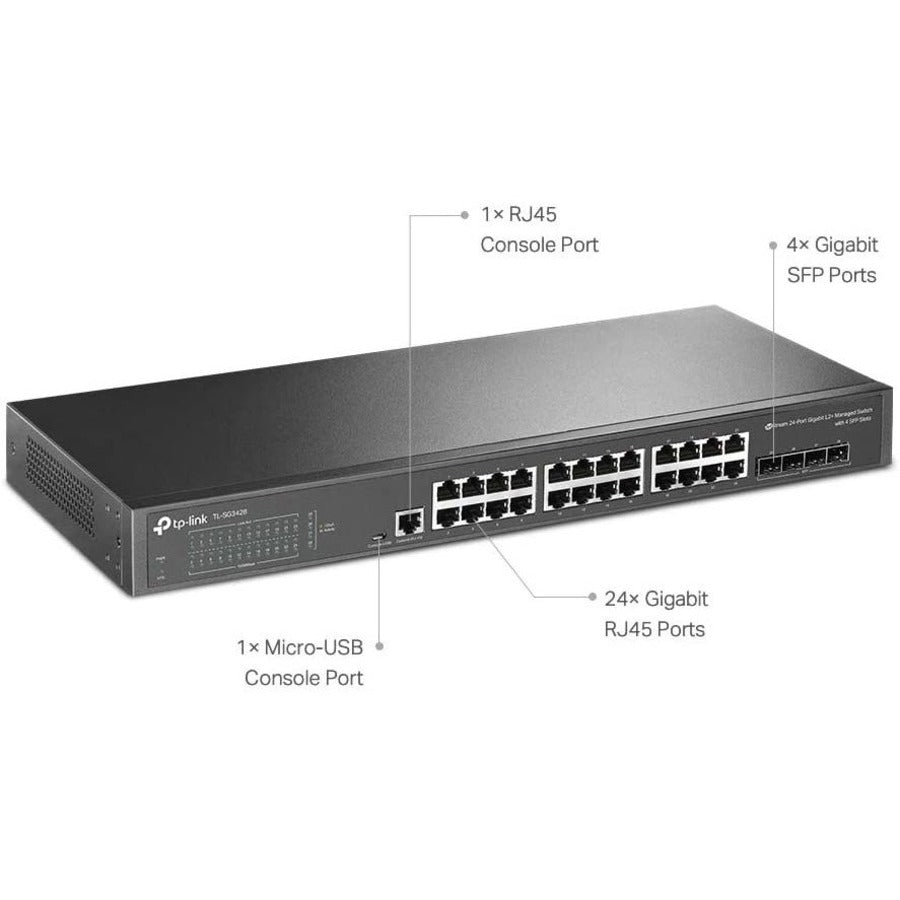

Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
Media Type Supported:
- Optical Fiber
- Twisted Pair
Network Technology:
- 1000Base-T
- 1000Base-X
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP (mini-GBIC)
Shared SFP Slot: No
Number of SFP Slots: 4
Layer Supported: 2
Networking Standards:
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.3x
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1ab
Manageable: Yes
PoE (RJ-45) Port: No
Frequency:
- 50 Hz
- 60 Hz
Power Consumption: 19.90 W
Form Factor:
- Rack-mountable
- Desktop
Width: 17.32" (440 mm)
Depth: 7.09" (180 mm)
Package Contents:
- JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 5 Year
Product Numbers: 845973010140
