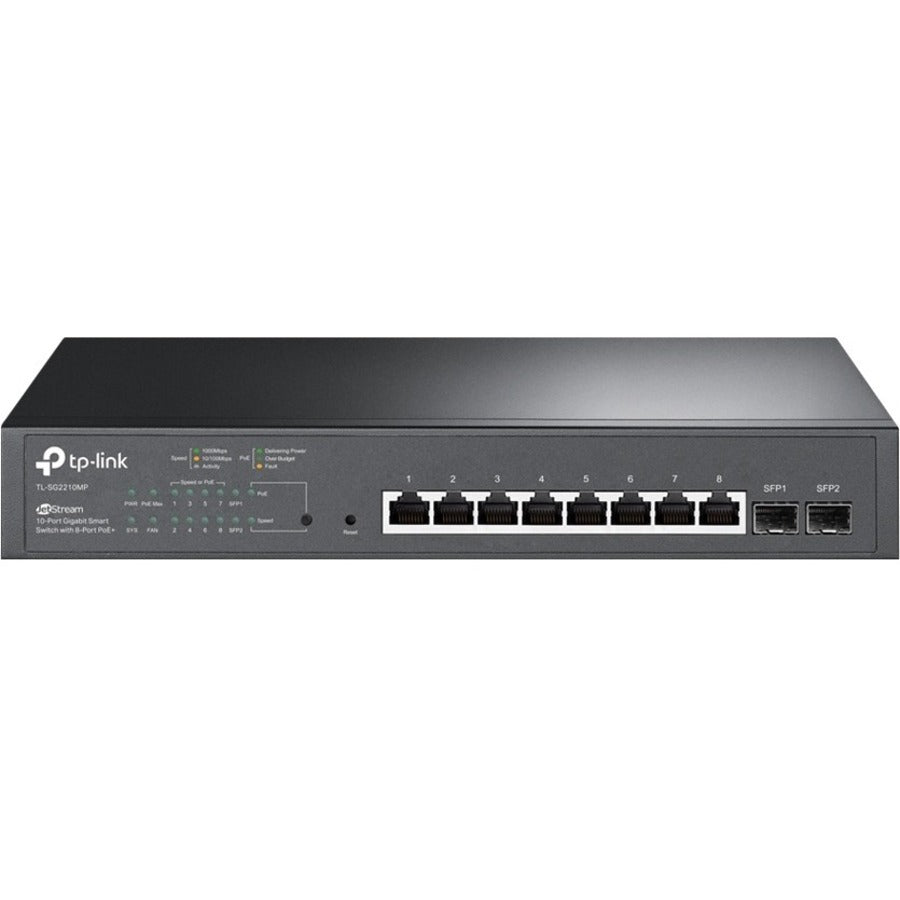

TP-Link JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

General Information

---

Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: TL-SG2210MP
Manufacturer Website Address: http://www.tp-link.com
Brand Name: TP-Link
Product Line: JetStream
Product Model: TL-SG2210MP
Product Name: JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
Marketing Information:

Realize More Possibilities with Omada

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

TL-SG2210MP

Centralized Cloud Management

Omada SDN Platform Integration

Advanced L2 Features

L2/L3/L4 QoS, ACL, IGMP Snooping and More

Abundant Security Strategies

LAN Area Investment Protection

PoE+ Output

8 PoE+ Ports with Total 150 W Power Budget

Software Defined Networking (SDN) with Cloud Access

Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Product Type: Ethernet Switch

Interfaces/Ports

---

Total Number of Network Ports: 10
Modular: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 8 x Gigabit Ethernet PoE+
• 2 x Gigabit Ethernet Expansion Slot

Media & Performance

---

Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

I/O Expansions

---

Total Number of Expansion Slots: 2
Expansion Slot Type: SFP (mini-GBIC)
Number of SFP Slots: 2

Network & Communication

---

Layer Supported: 4
Networking Standards:

• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3ad
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3az
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1Q
• IEEE 802.1x
• IEEE 802.1p

Management & Protocols

---

Manageable: Yes

Power Description

---

PoE (RJ-45) Port: Yes
PoE Budget: 150 W
Power Source: Power Supply
Power Consumption: 12.20 W

Physical Characteristics

---

Compatible Rack Unit: 1U
Form Factor:

• Desktop
• Rack-mountable

Height: 1.70" (43.18 mm)
Width: 11.60" (294.64 mm)
Depth: 7.10" (180.34 mm)

Miscellaneous

---

Package Contents:

• JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 5 Year
